光敏半導體元件：市場佔有率分析、產業趨勢與統計、成長預測（2026-2031）

Photosensitive Semiconductor Device - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)
出版日期: | 出版商: Mordor Intelligence | 英文 121 Pages | 商品交期: 2-3個工作天內

價格

※ 本網頁內容可能與最新版本有所差異。詳細情況請與我們聯繫。

簡介目錄

根據 Mordor Intelligence 預測，光敏半導體元件市場規模預計將在 2026 年達到 42.1 億美元，到 2031 年將成長至 52.2 億美元，預測期內複合年成長率為 4.35%。

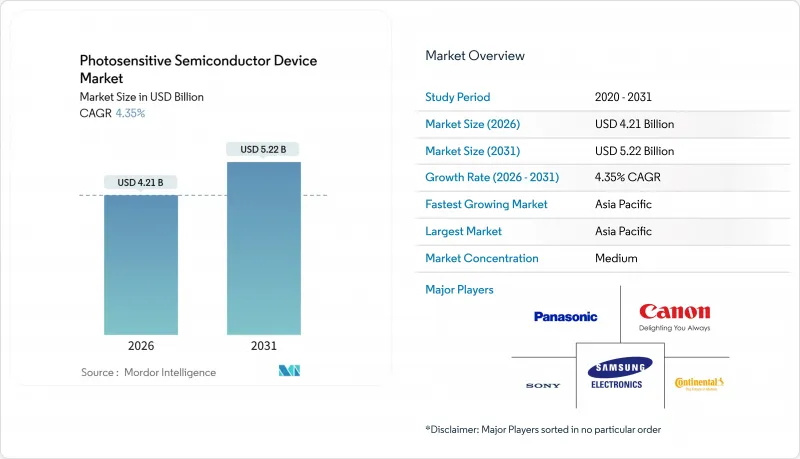

光敏半導體裝置市場-IMG1

本報告依元件類型（光電電池、光電二極體、光電電晶體等）、材料（矽、鍺等）、工作模式（光伏、光電導、Avalanche）、應用領域（光纖通訊、汽車等）、終端用戶（汽車OEM廠商、家用電子電器等）和地區進行細分。市場預測以美元計價。

全球光敏半導體元件市場趨勢及洞察

汽車ADAS和雷射雷達的應用日益廣泛

2025年前三個季度，雷射雷達（LiDAR）出貨量達到83萬台，主要得益於售價低於4萬美元的中國產SUV廣泛採用固態掃描儀。歐洲法規要求2027年車型必須配備自動緊急煞車系統，加速了前置攝影機叢集中崩光二極體的需求。受通用汽車（GM）和福特汽車產品部署的推動，北美主要供應商在2025年下半年的訂單量增加了40%。飛行時間（ToF）陣列要求回應時間小於10奈秒，這為已獲得AEC-Q101認證的現有公司設定了准入門檻。自2024年以來，單價已下降約60%，儘管目標市場規模不斷擴大，但檢測器供應商的利潤率卻受到擠壓。

智慧型手機多相機系統的出貨量正在激增。

隨著中階安卓手機廣泛採用超廣角和長焦鏡頭，預計2025年配備三個或以上後置相機的智慧型手機出貨量將超過7.2億部，高於2024年的5.8億部。SONY的堆疊式感測器整合了相位檢測像素和高動態範圍（HDR）處理技術，而三星的「ISOCELL GNJ」技術則將模組高度降低了8%。中國品牌目前正在採用背照式感測器，可在晶片上進行類比數位轉換，從而降低20%的功耗，並解決5G數據機帶來的電池續航限制。 ISO 12233和IEEE P2020標準的協調統一，使得可用於智慧型手機和車載監控的雙用途設計成為可能，從而加速了產品的再利用。

價格壓力不斷增加

由於中國新創公司以低於傳統廠商的價格銷售產品，主流CMOS感測器的平均售價從2024年第四季到2025年第三季下降了12%。汽車系統整合商目前預計每年價格將下降5%至7%，這將對分立光電二極體的利潤率造成壓力。計算攝影技術的普及使得旗艦級影像品質能夠應用於低解析度感測器，從而減緩了對硬體升級的需求。整合到系統晶片（SoC）中，將附加價值轉移到了代工廠合作夥伴，降低了傳統感測器供應商在物料清單（BOM）中的佔有率。

細分市場分析

預計到2025年，CMOS影像感測器將佔總銷量的41.28%，持續保持光敏半導體裝置市場的銷售領先地位。其主導地位源自於堆疊式架構，該架構將像素晶圓與邏輯晶圓分離，從而實現更大的滿阱容量、更快的讀取速度以及無需外部訊號處理器的片上AI模組。預計到2025年，SONY、三星和SK海力士的堆疊式感測器總合貨量將超過1億個，從而實現每秒60幀的8K影片和用於計算攝影的480幀連拍。背照式（BSI）佈局目前約佔智慧型手機產量的70%，較2023年的55%顯著成長。這是由於中端Android設備需要小於0.7微米的像素尺寸，以在低光照條件下保持靈敏度。受穿戴式裝置和無人機中攝影機持續普及的推動，與堆疊感測器相關的光敏半導體裝置的市場規模預計將從 2026 年的 17.4 億美元成長到 2031 年的 21.5 億美元。

分立式光電二極體（PIN、PN、Avalanche和肖特基型）在光纖通訊、醫療成像和工業自動化領域佔據穩固的細分市場。在這些領域，頻譜客製化和AEC-Q101認證的重要性超過了整合影像感測器的優勢。單光子崩潰式二極體和量子影像感測器陣列的成長速度最快，年複合成長率達4.89%，這主要得益於汽車和雷射雷達製造商對皮秒級時間精度的需求。整合了光電二極體、跨阻電阻和比較器的光電積體電路（Photo IC）因其能夠將基板面積減半並將功耗降低三分之一，在健康監測貼片和擴增實境（AR）頭顯中的應用日益廣泛。相較之下，光電電晶體、光敏電阻和傳統光電池在光敏半導體裝置市場佔有率中佔比不到2%，它們在慢速光耦合器和環境光學模組中的應用也逐漸減少。汽車回流焊接製程的可靠性仍然是一個尚未解決的難題。正向電壓漂移迫使供應商規定更嚴格的結電容容差和暗電流限制，這增加了測試成本，但保持了實際使用中的性能。

預計到2025年，矽將佔市場價值的62.16%。這主要得益於CMOS製程數十年的最佳化，使其缺陷密度低，單像素成本極低。這項優勢在智慧型手機、汽車環景顯示攝影機和機器視覺系統中尤其顯著，因為這些應用可以攤提晶圓模具和電路庫的成本。然而，隨著像素間距接近0.5微米，可見光頻寬量子效率上限接近95%，降低邊際成本的效果正在減弱。因此，供應商正試圖透過先進的摻雜分佈、背面深溝槽隔離和晶圓鍵合技術，將矽的性能發揮到極致，以保持競爭力。與矽相關的感光半導體裝置市場規模預計將以低於4%的複合年成長率溫和成長，但隨著替代技術的成熟，其整體市場佔有率預計將會下降。

從長遠來看，鈣鈦礦和有機半導體構成了最現實的威脅。日本和韓國的研究團隊報告稱，到2025年，他們在800-1200奈米頻寬實現了超過80%的外部量子效率，這一性能超越了砷化銦鎵（InGaAs），而其材料成本卻只有後者的十分之一。Panasonic用於儀錶板整合式有機光電二極體的試點生產線表明，該技術有望很快實現商業化。同時，濱松光子學和安森美半導體公司發布了鈣鈦礦Avalanche結構的藍圖評估報告，這些結構無需高反向偏壓即可實現內部增益。 IEC 60747和AEC-Q101都未對溶液法製備的薄膜層的可靠性做出規定，這造成了認證方面的空白。一級汽車零件供應商已獨立開發了1000小時的濕度和紫外線測試，這將使產品推出週期延長12個月。雖然鍺和銦鎵砷在通訊和光譜學領域仍然佔據著穩固的地位，但一旦鈣鈦礦檢測器在 85 度C和 85% 相對濕度條件下表現出 10,000 小時的穩定性，這些高價產品的價格競爭力將逐漸下降。

區域分析

預計到2025年，亞太地區將佔全球銷售額的44.17%，並以每年5.81%的速度成長至2031年。 2025年，中國電動車製造商安裝的LiDAR單元數量將超過世界其他地區總和。同時，韓國晶圓代工廠已出貨超過4億個智慧型手機影像感測器。在醫療和科學研究系統用崩光二極體市場，日本廠商佔據主導地位；儘管印度和東南亞國協的模組組裝正在擴張，但製造環節仍集中在中國、日本、韓國和台灣地區。

預計到2025年，北美將佔全球雷射雷達市場佔有率的約25%，這主要得益於汽車ADAS、資料中心光鏈路和國防項目等需求的成長。然而，與全球其他地區一樣，由於依賴日本製造的外延晶圓，該地區也容易受到前置作業時間波動的影響。儘管像Teledyne和安森美半導體這樣的公司在該地區設有晶圓廠，但它們的產能擴張速度落後於亞洲。美國國家公路交通安全管理局（NHTSA）在自動緊急煞車方面的監管進展正在推動雷射雷達的應用，但其製造業補貼力度不如歐洲的「晶片法」。

到2025年，歐洲和中東地區的銷售額約佔22%。德國和法國的工廠採用環景顯示攝影機以滿足通用安全法規（GSR）的要求，這使得該地區的影像感測器出貨量增加了35%。由於缺乏本地舉措光電二極體供應商，汽車製造商被迫從日本和美國採購，這促使歐洲推出政策，旨在為合資企業提供資金。南美洲和非洲的銷售額合計不到9%，其應用主要集中在採礦自動化和通訊回程傳輸。對進口的依賴和外匯波動正在阻礙成長。
