高階GPU封裝：市佔率分析、產業趨勢與統計及成長預測（2026-2031年）

GPU Advanced Packaging - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)
出版日期: | 出版商: Mordor Intelligence | 英文 169 Pages | 商品交期: 2-3個工作天內

價格

※ 本網頁內容可能與最新版本有所差異。詳細情況請與我們聯繫。

簡介目錄

據 Mordor Intelligence 稱，GPU 先進封裝市場預計將從 2025 年的 83 億美元成長到 2026 年的 137 億美元，到 2031 年達到 375 億美元，2026 年至 2031 年的複合年成長率為 22.31%。

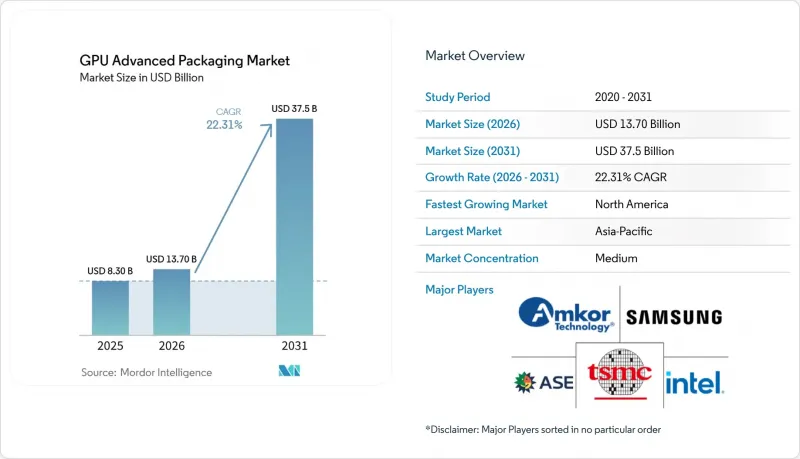

GPU先進封裝市場-IMG1

本報告依封裝技術（2.5D封裝、扇出/RDL封裝、嵌入式橋接封裝等）、GPU配置（單片GPU封裝、晶片級GPU封裝等）、應用（用於AI訓練的GPU、用於高效能運算的GPU等）、服務供應商（晶圓代工廠主導的封裝等）及地區進行細分。市場預測以美元（USD）為單位。

全球GPU先進封裝市場趨勢與洞察

對人工智慧GPU和HBM整合日益成長的需求正在推動封裝需求。

隨著人工智慧加速器對GPU邏輯和高頻寬記憶體（HBM）在同一封裝內緊密整合的需求日益成長，GPU先進封裝市場正在不斷擴張。這項需求進一步凸顯了中介層、晶片佈局、散熱路徑設計以及封裝級供電的重要性，因為所有這些都直接影響訓練和推理系統的實際性能。 2025年，SK海力士宣布其iHBM解決方案透過將散熱功能直接置於D2D PHY區域（熱量最集中的區域），在嚴苛的封裝環境下實現了30%的熱阻降低。這項轉變意義重大，因為記憶體堆疊不再只是組件選擇的問題；它正在改變整個GPU封裝的設計、認證和定價方式。隨著HBM堆疊密度的增加，封裝決策在設計週期的早期階段就已確定，並且與客戶的長期認證計劃緊密相關。這為先進封裝供應商帶來了更清晰的收入前景。因此，封裝層不再只是下游組裝工藝，而是成為了實現人工智慧系統的關鍵技術入口之一。

基於晶片組的GPU架構的成長增加了封裝的複雜性。

GPU先進封裝市場也受惠於晶片級GPU佈局的普及。這種佈局將大規模功能拆分成小型模組，並將它們重新連接在單一封裝內。雖然這種設計方法有助於供應商避免光阻限制和良率壓力，但也增加了對高密度晶片互連、更嚴格的對準和更複雜的組裝流程的需求。 2025年發表在IEEE固態電路期刊上的一項研究展示了一個可擴展的異構2.5D系統，該系統擁有300MB的SRAM、20Tb/s的頻寬，並可跨20個晶片同時進行推理，這表明多晶片設計正在超越簡單的並行整合。英特爾在其2025年11月發布的Foveros Direct 3D技術概述中也指出，混合鍵合技術支援極細間距互連和更高密度的垂直整合，這進一步印證了先進封裝將在下一代運算架構中發揮核心作用的原因。從實際角度來看，晶片組的採用使得人工智慧訓練、高效能運算和高階推理產品所需的封裝類型更加多樣化，從而打破了對單一封裝格式的依賴。隨著產品藍圖變得更加模組化，這種多樣化將為GPU先進封裝市場創造更廣泛、更永續的需求基礎。

CoWoS 和類似的產能瓶頸限制了其轉化為獲利能力。

由於對尖端封裝格式的需求仍集中在少數經過認證的平台和生產線上，GPU先進封裝市場面臨供應瓶頸。即使終端用戶需求強勁，除非基板供應、中介層產能、記憶體整合和終端封裝產能同步成長，否則無法確保足夠的收入。美國商務部在宣布大規模政府津貼以建構國內生態系統時，將先進封裝列為半導體供應鏈中的策略缺口。這證實了目前供應仍存在結構性限制的觀點。這種限制對旗艦級人工智慧專案的影響最為顯著，因為這些產品依賴最先進的封裝工藝，一旦設計認證完成，就很難輕易切換到複雜度較低的替代方案。這種情況也導致客戶集中在少數幾家已處於領先地位的供應商，從而限制了需要快速大規模生產的GPU設計人員的議價能力。在更多經過認證的生產線投入運作之前，無論來自哪個地區或供應商，GPU先進封裝市場都將繼續面臨需求超過實際封裝產能的局面。

細分市場分析

2025年，2.5D矽中介層封裝佔了70.11%的市場佔有率，持續維持其在先進GPU封裝市場量產核心組件的地位。這一地位反映了其作為先進GPU和HBM組合預設整合方式的作用，此類封裝必須支援高密度互連、大規模記憶體佔用和穩定的散熱特性。實施認證設計流程的成熟經驗也是關鍵因素，因為客戶已經在高價值專案中依賴這種封裝形式，並且在產品量產擴展階段難以承受漫長的重新認證週期。事實上，2.5D之所以能夠保持領先地位，是因為它在頻寬密度、客戶熟悉的技術以及為大型AI部署提供短期量產準備方面實現了最佳平衡。

此外，先進GPU封裝市場正向混合式2.5D+3D封裝轉型，預計到2031年將以23.21%的複合年成長率成長。該細分市場之所以擴張，是因為水平整合和垂直堆疊的結合使其能夠突破純中介層設計的實際限制。這一方向與整個行業在細間距混合鍵合、高密度垂直連接和更先進的異構整合方面的努力相一致。扇出和重分佈層（RDL）方案仍然適用於需要更薄外形尺寸和成本控制的項目，而嵌入式橋接解決方案正在客戶尋求超越最大尺寸中介層平台的可靠路徑時發揮其作用。從長遠來看，這意味著先進GPU封裝產業正從單一的主流封裝轉向更精細的技術組合，以滿足工作負載需求、散熱限制和客戶預算。

到2025年，基於晶片組的GPU封裝將佔55.33%的構成比，成為先進GPU封裝市場的主導配置。這一佔有率反映了設計邏輯的結構性轉變，因為將功能分類到更小的晶片上，使供應商更容易管理良率、光罩邊界以及跨多個性能層級的產品擴展。這也與研究結果相符，研究表明，晶片組密集的2.5D系統可以在眾多主動晶片上提供極高的頻寬和廣泛的配置柔軟性。這種組合使晶片組佈局在最高價值的AI加速器領域比單一大型晶片擁有更強大的長期基礎。

預計到2031年，採用堆疊式快取和I/O晶片的GPU封裝將以23.62%的複合年成長率成長，使其成為新興設計層級中GPU先進封裝市場規模討論中成長最快的配置。這種成長與在不超出現有基板、電源和散熱系統承載能力的前提下，提高頻寬和降低延遲的需求密切相關。超細間距混合鍵合技術透過實現更高密度的垂直連接和更緊湊的異構堆疊，正在推動這一發展方向。單片GPU封裝在遊戲、視覺化和其他對成本敏感的領域仍發揮重要作用，因為在這些領域，拆卸式配置並非總是經濟高效。然而，隨著人工智慧運算需求的成長，GPU先進封裝市場的設計重點正轉向更多多層和模組化的封裝結構。

區域分析

2025年，GPU先進封裝市場仍將集中在亞太地區，佔全球供需總量的68.44%。這一主導地位源自於該地區完善的晶圓代工廠、記憶體供應、基板技術能力以及OSAT規模，這些優勢使客戶能夠縮短設計、組裝和認證之間的反饋週期。韓國憑藉其在先進記憶體和封裝聯合開發方面的緊密合作，仍然是該市場的重要參與者。 2026年6月，NVIDIA和SK海力士正式簽署了一項多年期AI內存平台技術合作協議，進一步加強了雙方的合作關係。亞太地區也擁有成熟的供應商網路，能夠以商業規模支援多種封裝技術，從基於中介層的封裝製程到更具實驗性的下一代封裝形式。因此，即使其他地區加快了投資步伐，GPU先進封裝市場在亞太地區仍將保持蓬勃發展。

預計到2031年，北美將以23.42%的複合年成長率成長，成為GPU先進封裝市場規模展望中成長最快的區域市場。這一成長得益於直接的公共資金支持、試點基礎設施建設以及旨在增強半導體韌性的全新國內封裝計劃。美國商務部於2025年1月宣布的14億美元最終津貼方案，使先進封裝從供應鏈的次要環節躍升為更廣泛的半導體政策的核心。對安姆科公司計劃在亞利桑那州建設的園區的初步支持，將這項政策延伸至商業生產能力，表明美國正在尋求在國內建立一個功能完善、高產能的OSAT（外包半導體製造和技術）基地。對於國防、超大規模運算和國家基礎設施領域的客戶而言，本地生產能力的價值不僅體現在成本上，還體現在可靠性、前置作業時間和風險管理方面。

歐洲、南美洲以及中東和非洲地區繼續塑造先進GPU封裝市場，儘管它們的直接生產規模仍然較小，但這種影響主要體現在設備、材料和下游需求方面。尤其值得一提的是，歐洲在製程製程設備和生態系統發展方面發揮著至關重要的作用，其供應商支持著下一代封裝形式的進步，這些封裝形式正被整合到全球生產鏈中。 2025年4月，LPKF和Onto Innovation宣佈建立合作夥伴關係，以加速玻璃芯基板的量產，這進一步印證了歐洲將在未來封裝架構的建構中發揮作用，而非主導GPU的大規模生產組裝。南美洲和中東及非洲地區作為人工智慧基礎設施應用市場的重要性日益凸顯，而非主要的封裝生產中心。即使當地的製造地相對較小，這些應用仍推動著對來自主要供應地區的先進封裝GPU的需求。

其他好處：
