印刷基板檢測設備：市場佔有率分析、產業趨勢與統計、成長預測（2026-2031）

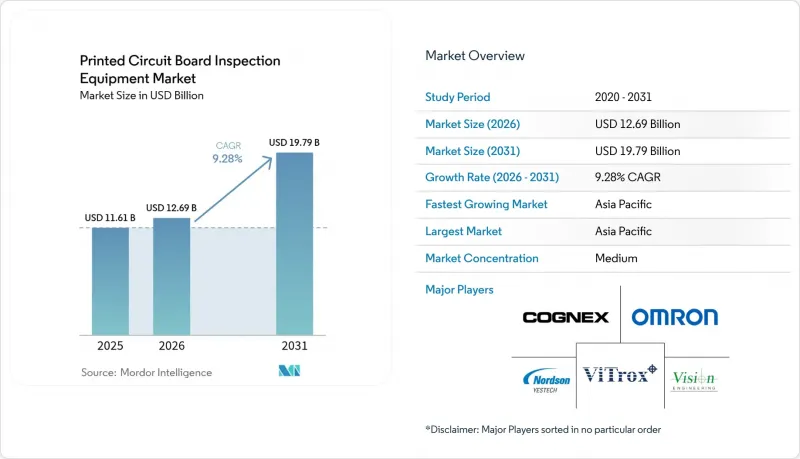

據 Mordor Intelligence 稱，印刷基板檢測設備的市場規模預計在 2026 年達到 126.9 億美元，高於 2025 年的 116.1 億美元，預計到 2031 年將達到 197.9 億美元。

預計從 2026 年到 2031 年，其複合年成長率將達到 9.28%。

本報告按檢測方法（例如，自動光學檢測 (AOI)）、系統類型（例如，線上系統）、技術（例如，2D AOI、3D AOI）、最終用戶（例如，消費性電子產品製造商、汽車電子產品製造商）、PCB 類型（例如，剛性 PCB、軟性 PCB 和軟硬複合PCB）以及地區進行細分。市場預測以美元 (USD) 為單位。

全球印刷基板檢測設備市場趨勢及洞察

電子設備領域小型化與元件密度提升的進展

智慧型手機元件間距已縮小至 0.3 毫米，迫使製造商放棄人工目視檢查，轉而採用能夠識別小於 20 微米微結構的 AOI 系統。 50 微米至 150 微米的微孔、盲孔和嵌入式通孔堆疊以及線路重布下方的銅柱在2D灰階影像中均無法顯示。

2024年，台灣工業技術研究院展示了一款採用深紫外線（DUV）技術的20奈米解析度原型機，能夠偵測晶片基板上的微小裂縫。由於即使是價值5000美元的資料中心GPU基板的一個缺陷也會導致報廢成本，因此，每基板僅需15秒即可完成的線上3D檢測在經濟上是合理的。

汽車電子產品和電動車 (EV) 的成長

預計到 2024 年，全球電動車產量將達到 1,400 萬輛，到 2030 年將超過 4,000 萬輛。每輛電動車都包含一個電源模組、一個電池管理板和一個駕駛輔助控制器，這些組件加起來使用的 PCB 數量是內燃機汽車的三倍。

一級供應商正逐步過渡到100%線上X光檢測，以滿足IATF 16949可靠性標準；同時，ISO 26262標準要求對安全相關組件的檢測結果進行電子追溯。檢測標準的日益嚴格推動了對3D AOI和3D電腦斷層掃描（CT）平台的需求。

先進的AOI和AXI系統需要大量的初始投資。

基於雷射三角測量技術的3D AOI平台售價在15萬至40萬美元之間，而亞微米級CT X光系統的成本則超過60萬美元。如此高昂的成本構成了一項重大挑戰，尤其對於成本敏感型市場中的企業而言，因為這些設備需要大量的初始投資。 2022年至2024年間，利率上升導致加權平均資本成本（WACC）增加了150至200個基點，延長了投資回收期並延遲了設備訂購，進一步加重了企業的財務負擔。這些財務壓力迫使許多公司重新評估其資本配置策略。設備即服務（EaaS）將資本支出（CAPEX）轉化為營運支出（OPEX），從而減輕了企業的初始財務負擔，但目前仍主要局限於成熟經濟體。這種有限的普及程度歸因於這些地區擁有先進的基礎設施、有利的法規環境以及較高的技術成熟度等因素。

細分市場分析

到2025年，自動化光學檢測將佔銷售額的56.93%，顯示2D和新興的3D光學技術能夠處理的任務範圍非常廣泛。同時，受球柵陣列（BGA）、量子點封裝（QFN）和矽封裝（SiP）模組普及的推動，X光檢測預計將以10.74%的複合年成長率成長至2031年。電腦斷層掃描（CT）系統將取代破壞性的截面切割，以1µm的體素解析度穿透矽通孔（TSV）內的微凸塊和空隙。對於間距大於0.5mm的元件，純光學偵測站仍具有成本效益，但隨著0.3mm間距成為主流，其適用範圍將縮小。焊膏檢測已完全整合到表面黏著技術線中，可以及早發現鋼網缺陷，從而將下游返工減少80%以上。

X光檢測技術的應用主要受半導體封裝趨勢的推動，該趨勢是將晶片級架構引入PCB組裝。 Comet和Waygate等供應商目前提供針對高產能基板線最佳化的CT掃描儀，這些掃描儀兼具半導體級解析度和輸送機式處理能力。光學檢測設備在低風險消費品領域仍佔據主導地位，但智慧型手機中屏下相機和可折疊軟性電纜的體積檢測需求也在不斷成長。總體而言，X光檢測技術的發展正在推動印刷基板檢測設備市場的發展，因為它能夠檢測可見光無法觸及的區域。

預計到2025年，線上檢測系統將佔市場需求的60.72%，並以11.68%的複合年成長率成長，這是所有外形規格中最高的成長率。與輸送機的整合使得每塊電路基板的偵測時間僅需15-30秒，且不會中斷生產流程。與印表機和貼片機的封閉回路型回饋機制，使得缺陷偵測後能夠立即進行製程修正，這是離線偵測站無法實現的。按次收費的合約將檢測成本視為與小批量生產相關的可變成本，進一步提升了線上檢測系統的經濟效益。

在工程實驗室、產品初步檢驗以及醫療設備和航空電子設備的製造現場，離線式和桌上型偵測站仍然被廣泛使用，因為在小批量生產中，柔軟性比速度更為重要。然而，隨著契約製造製造商將多項任務整合到單一線上節點中，這些設備的安裝數量正在逐漸減少。因此，印刷基板檢測設備市場越來越依賴線上平台，這不僅體現在規模上，也體現在智慧工廠環境所需的數據細節層面。

區域分析

預計到2025年，亞太地區將佔全球銷售額的37.88%，並在2031年之前以11.12%的複合年成長率持續成長。光是中國就佔全球電子產品製造業的28%，富士康和立訊精密等代工組裝均位於中國，這使得線上AOI技術在智慧型手機、筆記型電腦和穿戴式裝置的生產線上至關重要。韓國和台灣地區專注於用於記憶體模組和資料中心加速器的HDI基板，而日本則在汽車和工業電子領域佔據高階細分市場，這解釋了為何能更早採用CT掃描技術。中國的「中國製造2025」計畫和韓國的「K-Semiconductor戰略」等政府計畫正在補貼智慧工廠工具，進一步推動了區域需求。

預計到2025年，北美和歐洲合計約佔全球銷售額的44.62%。美國《晶片與科學法案》撥款520億美元用於半導體和先進封裝工廠，其中大部分將用於為基板和中介層生產線安裝檢測設備。德國、法國和義大利正在擴大汽車電子產品的產能，並安裝CT X光檢測設備以確保電池組和功率模組的品質。 FDA 21 CFR 820（醫療設備）和AS9100 （航太）等管理體制正在鞏固離線CT和聲學顯微鏡的銷售基礎。

中東、非洲和南美洲的市場佔有率較小，儘管存在區域差異，但整體呈現成長趨勢。在以色列的國防和醫療設備領域，IPC 3級可追溯性是強制性的，這推動了CT設備的採購。沙烏地阿拉伯和阿拉伯聯合大公國（阿拉伯聯合大公國）推出國內電子產品項目，作為其經濟多元化策略的一部分，從而創造了對中端AOI（自動光學檢測）系統的需求。在巴西和阿根廷，消費性電子產品和工業控制設備主要在本地組裝，價格具競爭力的2DAOI系統更受青睞，同時工業4.0資料採集也逐漸普及。這些新興市場共同推動印刷電路基板檢測設備市場規模的擴大，使其超越了傳統主要市場。

其他好處：

• Excel格式的市場預測（ME）表
• 3個月的分析師支持

目錄

第1章：引言

• 研究假設和市場定義
• 調查範圍

第2章：調查方法

第3章執行摘要

第4章 市場狀況

• 市場概覽
• 市場促進因素
  • 電子領域小型化與元件密度提升的進展
  • 透過工業4.0擴大智慧製造生產線的應用
  • 汽車電子和電動汽車的發展
  • 透過引進利用先進人工智慧的缺陷分類系統，可以減少誤報。
  • 按測試收費和設備即服務 (EaaS)經營模式降低了資本投資的門檻。
  • 先進封裝和晶片級PCB對亞微米3D檢測的需求
• 市場限制因素
  • 先進的AOI/AXI系統需要較高的初始資本投入。
  • 負責系統編程和維護的熟練技術人員短缺
  • 科技快速過時導致投資回報週期縮短。
  • 高功率X光偵測線的輻射安全遵循成本
• 價值鏈分析
• 監理情勢
• 技術展望
• 宏觀經濟因素對市場的影響
• 波特五力分析

第5章 市場規模與成長預測

• 透過測試方法
  • 自動光學檢測（AOI）
  • X光檢查（AXI）
  • 焊膏測試（SPI）
  • 其他特殊檢測方法（聲學、雷射、熱成像）
• 依系統類型
  • 線上系統
  • 離線/桌上型系統
• 透過技術
  • 2D AOI
  • 3D AOI
  • 2DX光
  • 3D/CT/X光
• 最終用戶
  • 消費性電子產品製造商
  • 汽車電子製造商
  • 工業及能源相關電子設備
  • 航太/國防
  • 醫療設備製造商
• 按PCB類型
  • 剛性PCB
  • 軟性PCB和軟硬複合PCB
  • 高密度互連（HDI）PCB
  • 用於先進封裝的基板
• 按地區
  • 北美洲
    • 美國
    • 加拿大
    • 墨西哥
  • 歐洲
    • 英國
    • 德國
    • 法國
    • 義大利
    • 其他歐洲國家
  • 亞太地區
    • 中國
    • 日本
    • 印度
    • 韓國
    • 其他亞洲國家
  • 中東
    • 以色列
    • 沙烏地阿拉伯
    • 阿拉伯聯合大公國
    • 土耳其
    • 其他中東國家
  • 非洲
    • 南非
    • 埃及
    • 其他非洲國家
  • 南美洲
    • 巴西
    • 阿根廷
    • 其他南美國家

第6章 競爭情勢

• 市場集中度
• 策略趨勢
• 市佔率分析
• 公司簡介
  • Nordson Corporation
  • Koh Young Technology Inc.
  • Omron Corporation
  • ViTrox Corporation Berhad
  • Mirtec Co., Ltd.
  • Viscom AG
  • Saki Corporation
  • CyberOptics Corporation
  • Test Research Inc.
  • KLA Corporation
  • Camtek Ltd.
  • Yamaha Motor Co., Ltd.（Yamaha SMT）
  • Unicomp Technology Co., Ltd.
  • Nikon Corporation
  • Comet Yxlon GmbH
  • Waygate Technologies GmbH
  • Shenzhen JT Automation Equipment Co., Ltd.
  • GOPEL electronic GmbH
  • Machine Vision Products Inc.
  • Pemtron Corporation

第7章 市場機會與未來展望

According to Mordor Intelligence, printed circuit board inspection equipment market size in 2026 is estimated at USD 12.69 billion, growing from 2025 value of USD 11.61 billion with 2031 projections showing USD 19.79 billion, growing at 9.28% CAGR over 2026-2031.

This report is Segmented by Inspection Method (Automatic Optical Inspection, and More), System Type (Inline Systems, and More), Technology (2D AOI, 3D AOI, and More), End User (Consumer Electronics, Automotive Electronics, and More), PCB Type (Rigid PCBs, Flexible and Rigid-Flex PCBs, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Global Printed Circuit Board Inspection Equipment Market Trends and Insights

Increasing Miniaturization and Higher Component Densities in Electronics

Component pitch in smartphones has already tightened to 0.3 mm, forcing manufacturers to retire manual visual checks in favour of AOI systems able to resolve features below 20 µm. Microvias between 50 µm and 150 µm, blind or buried via stacks, and copper pillars beneath redistribution layers are invisible to 2D grayscale imaging.

Taiwan's Industrial Technology Research Institute demonstrated a deep-UV 20 nm-resolution prototype in 2024 that identifies micro-cracks in chiplet substrates. As a single defect on a USD 5,000 data-center GPU substrate now drives scrap cost, inline 3D inspection at 15 s per board is economically justified.

Growth in Automotive Electronics and Electric Vehicles

Global EV output climbed to 14 million units in 2024 and is expected to surpass 40 million units by 2030. Each EV integrates power modules, battery-management boards, and driver-assistance controllers that collectively triple PCB content versus internal-combustion vehicles.

Tier-1 suppliers have moved to 100% inline X-ray inspection to meet IATF 16949 reliability standards, while ISO 26262 mandates electronic traceability of inspection results for safety-related assemblies. Increased inspection intensity lifts demand for both 3D AOI and 3D computed tomography (CT) platforms.

High Initial Capital Investments for Advanced AOI And AXI System

Prices for a laser-triangulation 3D AOI platform range from USD 150,000 to 400,000, whereas a sub-micron CT X-ray system commands a price tag exceeding USD 600,000. These high costs pose significant challenges for companies, particularly those operating in cost-sensitive markets, as they require substantial upfront investments. Between 2022 and 2024, rising interest rates pushed the weighted average cost of capital up by 150 to 200 basis points, further straining financial resources by elongating payback periods and causing delays in equipment orders. This financial pressure has led many businesses to reassess their capital allocation strategies. While equipment-as-a-service offerings transform capital expenditure into operational expenditure (OPEX), enabling companies to reduce initial financial burdens, their adoption remains largely confined to mature economies. This limited uptake is attributed to factors such as the availability of advanced infrastructure, favorable regulatory environments, and higher levels of technological readiness in these regions.

Other drivers and restraints analyzed in the detailed report include:

1. Rising Adoption of Industry 4.0 Smart Manufacturing Lines
2. Deployment of Advanced AI-Enabled Defect Classification Reducing False Calls
3. Shortage Of Skilled Technicians for System Programming and Maintenance

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

Automatic optical inspection delivered 56.93% of 2025 revenue, demonstrating the breadth of tasks addressable by 2D and emerging 3D optics. X-ray inspection, however, is forecast to expand at an 10.74% CAGR through 2031 as ball-grid arrays, QFNs, and SiP modules proliferate. Computed-tomography units visualize voiding in micro-bumps and through-silicon vias at 1 µm voxel resolution, replacing destructive cross-sectioning. Optical-only stations remain cost-effective for components above 0.5 mm pitch, but their addressable share will narrow as 0.3 mm pitch becomes mainstream. Solder-paste inspection is fully integrated into surface-mount lines to catch stencil defects early, reducing downstream rework by more than 80%.

X-ray adoption draws support from semiconductor packaging trends that push chiplet architectures onto PCB assembly floors. Vendors such as Comet and Waygate now offer CT scanners tailored for high-throughput board lines, merging semiconductor-class resolution with conveyorized handling. Optical stations still dominate low-risk consumer products, yet even in smartphones volumetric checks are rising for under-display cameras and folded flex tails. Overall, x-ray growth lifts the printed circuit board inspection equipment market by unlocking inspection windows unreachable by visible light.

Inline systems held 60.72% of 2025 demand and are projected to progress at a 11.68% CAGR, the fastest among all form factors. Their conveyor integration enables 100% board coverage at 15-30 s per piece without interrupting flow. Closed-loop feedback with printers and placement machines converts defect detection into immediate process correction, a capability that offline stations cannot match. Pay-per-inspection agreements further tilt economics toward inline purchases by treating inspection as a variable cost tied to low volume.

Offline and benchtop stations continue to serve engineering labs, first-article inspections, and low-volume medical, and avionics builds where flexibility outweighs speed. Yet their installed base is slowly declining as contract manufacturers consolidate multiple tasks into single inline nodes. The printed circuit board inspection equipment market therefore leans on inline platforms not only for scale but also for data granularity needed in smart-factory environments.

Complete Report Scope:

• By Inspection Method
  • Automatic Optical Inspection (AOI)
  • X-Ray Inspection (AXI)
  • Solder Paste Inspection (SPI)
  • Other Specialized Methods (Acoustic, Laser, Thermography)
• By System Type
  • Inline Systems
  • Offline / Benchtop Systems
• By Technology
  • 2D AOI
  • 3D AOI
  • 2D X-Ray
  • 3D / CT X-Ray
• By End User
  • Consumer Electronics Manufacturers
  • Automotive Electronics Manufacturers
  • Industrial and Energy Electronics
  • Aerospace and Defense
  • Medical Device Manufacturers
• By PCB Type
  • Rigid PCBs
  • Flexible and Rigid-Flex PCBs
  • High-Density Interconnect (HDI) PCBs
  • Advanced Packaging Substrates
• Geography
  • North America
    • United States
    • Canada
    • Mexico
  • Europe
    • United Kingdom
    • Germany
    • France
    • Italy
    • Rest of Europe
  • Asia-Pacific
    • China
    • Japan
    • India
    • South Korea
    • Rest of Asia
  • Middle East
    • Israel
    • Saudi Arabia
    • United Arab Emirates
    • Turkey
    • Rest of Middle East
  • Africa
    • South Africa
    • Egypt
    • Rest of Africa
  • South America
    • Brazil
    • Argentina
    • Rest of South America

Geography Analysis

Asia-Pacific delivered 37.88% of global revenue in 2025 and is expected to expand at an 11.12% CAGR to 2031. China alone accounts for 28% of worldwide electronics manufacturing and hosts contract assemblers such as Foxconn and Luxshare Precision that mandate inline AOI across smartphone, laptop, and wearable lines. South Korea and Taiwan specialize in HDI substrates for memory modules and data-center accelerators, while Japan maintains a premium niche in automotive and industrial electronics that justifies early adoption of CT inspection. Government programs like China's Made in China 2025 and South Korea's K-Semiconductor Strategy subsidize smart-factory tools, further lifting regional demand.

North America and Europe jointly held roughly 44.62% of 2025 turnover. The United States CHIPS and Science Act allocate USD 52 billion for semiconductor and advanced-packaging plants, many of which will source inspection equipment for substrate and interposer lines. Germany, France, and Italy are upgrading automotive electronics capacity, installing CT X-ray to safeguard battery-pack and power-module quality. Regulatory regimes such as FDA 21 CFR 820 for medical devices and AS9100 for aerospace secure a baseline of offline CT and acoustic microscopy sales.

The Middle East, Africa, and South America contribute smaller shares but demonstrate patchy growth. Israel's defense and medical-device sector insist on IPC Class 3 traceability, prompting CT purchases. Saudi Arabia and the United Arab Emirates have launched domestic electronics programs as part of diversification agendas, adding mid-tier AOI demand. Brazil and Argentina assemble consumer electronics and industrial controls for regional consumption, favouring cost-competitive 2D AOI units yet gradually incorporating Industry 4.0 data collection. These emerging hubs collectively enlarge the printed circuit board inspection equipment market footprint beyond traditional strongholds.

1. Nordson Corporation
2. Koh Young Technology Inc.
3. Omron Corporation
4. ViTrox Corporation Berhad
5. Mirtec Co., Ltd.
6. Viscom AG
7. Saki Corporation
8. CyberOptics Corporation
9. Test Research Inc.
10. KLA Corporation
11. Camtek Ltd.
12. Yamaha Motor Co., Ltd. (Yamaha SMT)
13. Unicomp Technology Co., Ltd.
14. Nikon Corporation
15. Comet Yxlon GmbH
16. Waygate Technologies GmbH
17. Shenzhen JT Automation Equipment Co., Ltd.
18. GOPEL electronic GmbH
19. Machine Vision Products Inc.
20. Pemtron Corporation

Additional Benefits:

• The market estimate (ME) sheet in Excel format
• 3 months of analyst support

TABLE OF CONTENTS

1 INTRODUCTION

• 1.1 Study Assumptions and Market Definition
• 1.2 Scope of the Study

2 RESEARCH METHODOLOGY

3 EXECUTIVE SUMMARY

4 MARKET LANDSCAPE

• 4.1 Market Overview
• 4.2 Market Drivers
  • 4.2.1 Increasing Miniaturization and Higher Component Densities in Electronics
  • 4.2.2 Rising Adoption of Industry 4.0 Smart Manufacturing Lines
  • 4.2.3 Growth in Automotive Electronics and Electric Vehicles
  • 4.2.4 Deployment of Advanced AI-Enabled Defect Classification Reducing False Calls
  • 4.2.5 Pay-Per-Inspection and Equipment-as-a-Service Business Models Lowering CapEx Barriers
  • 4.2.6 Demand for Sub-Micron 3D Inspection in Advanced Packaging and Chiplet PCBs
• 4.3 Market Restraints
  • 4.3.1 High Initial Capital Investments for Advanced AOI/AXI Systems
  • 4.3.2 Shortage of Skilled Technicians for System Programming and Maintenance
  • 4.3.3 Rapid Technology Obsolescence Leading to Compressed ROI Cycles
  • 4.3.4 Radiation Safety Compliance Costs for High-Power X-Ray Inspection Lines
• 4.4 Value-Chain Analysis
• 4.5 Regulatory Landscape
• 4.6 Technological Outlook
• 4.7 Impact of Macroeconomic Factors on the Market
• 4.8 Porter's Five Forces Analysis
  • 4.8.1 Threat of New Entrants
  • 4.8.2 Bargaining Power of Buyers
  • 4.8.3 Bargaining Power of Suppliers
  • 4.8.4 Threat of Substitute Products
  • 4.8.5 Intensity of Competitive Rivalry

5 MARKET SIZE AND GROWTH FORECASTS (VALUE)

• 5.1 By Inspection Method
  • 5.1.1 Automatic Optical Inspection (AOI)
  • 5.1.2 X-Ray Inspection (AXI)
  • 5.1.3 Solder Paste Inspection (SPI)
  • 5.1.4 Other Specialized Methods (Acoustic, Laser, Thermography)
• 5.2 By System Type
  • 5.2.1 Inline Systems
  • 5.2.2 Offline / Benchtop Systems
• 5.3 By Technology
  • 5.3.1 2D AOI
  • 5.3.2 3D AOI
  • 5.3.3 2D X-Ray
  • 5.3.4 3D / CT X-Ray
• 5.4 By End User
  • 5.4.1 Consumer Electronics Manufacturers
  • 5.4.2 Automotive Electronics Manufacturers
  • 5.4.3 Industrial and Energy Electronics
  • 5.4.4 Aerospace and Defense
  • 5.4.5 Medical Device Manufacturers
• 5.5 By PCB Type
  • 5.5.1 Rigid PCBs
  • 5.5.2 Flexible and Rigid-Flex PCBs
  • 5.5.3 High-Density Interconnect (HDI) PCBs
  • 5.5.4 Advanced Packaging Substrates
• 5.6 Geography
  • 5.6.1 North America
    • 5.6.1.1 United States
    • 5.6.1.2 Canada
    • 5.6.1.3 Mexico
  • 5.6.2 Europe
    • 5.6.2.1 United Kingdom
    • 5.6.2.2 Germany
    • 5.6.2.3 France
    • 5.6.2.4 Italy
    • 5.6.2.5 Rest of Europe
  • 5.6.3 Asia-Pacific
    • 5.6.3.1 China
    • 5.6.3.2 Japan
    • 5.6.3.3 India
    • 5.6.3.4 South Korea
    • 5.6.3.5 Rest of Asia
  • 5.6.4 Middle East
    • 5.6.4.1 Israel
    • 5.6.4.2 Saudi Arabia
    • 5.6.4.3 United Arab Emirates
    • 5.6.4.4 Turkey
    • 5.6.4.5 Rest of Middle East
  • 5.6.5 Africa
    • 5.6.5.1 South Africa
    • 5.6.5.2 Egypt
    • 5.6.5.3 Rest of Africa
  • 5.6.6 South America
    • 5.6.6.1 Brazil
    • 5.6.6.2 Argentina
    • 5.6.6.3 Rest of South America

6 COMPETITIVE LANDSCAPE

• 6.1 Market Concentration
• 6.2 Strategic Moves
• 6.3 Market Share Analysis
• 6.4 Company Profiles (includes Global Level Overview, Market Level Overview, Core Segments, Financials as available, Strategic Information, Market Rank/Share for key companies, Products and Services, and Recent Developments)
  • 6.4.1 Nordson Corporation
  • 6.4.2 Koh Young Technology Inc.
  • 6.4.3 Omron Corporation
  • 6.4.4 ViTrox Corporation Berhad
  • 6.4.5 Mirtec Co., Ltd.
  • 6.4.6 Viscom AG
  • 6.4.7 Saki Corporation
  • 6.4.8 CyberOptics Corporation
  • 6.4.9 Test Research Inc.
  • 6.4.10 KLA Corporation
  • 6.4.11 Camtek Ltd.
  • 6.4.12 Yamaha Motor Co., Ltd. (Yamaha SMT)
  • 6.4.13 Unicomp Technology Co., Ltd.
  • 6.4.14 Nikon Corporation
  • 6.4.15 Comet Yxlon GmbH
  • 6.4.16 Waygate Technologies GmbH
  • 6.4.17 Shenzhen JT Automation Equipment Co., Ltd.
  • 6.4.18 GOPEL electronic GmbH
  • 6.4.19 Machine Vision Products Inc.
  • 6.4.20 Pemtron Corporation

7 MARKET OPPORTUNITIES AND FUTURE OUTLOOK

• 7.1 White-Space and Unmet-Need Assessment
