MEMS封裝：市場佔有率分析、產業趨勢與統計、成長預測（2026-2031年）

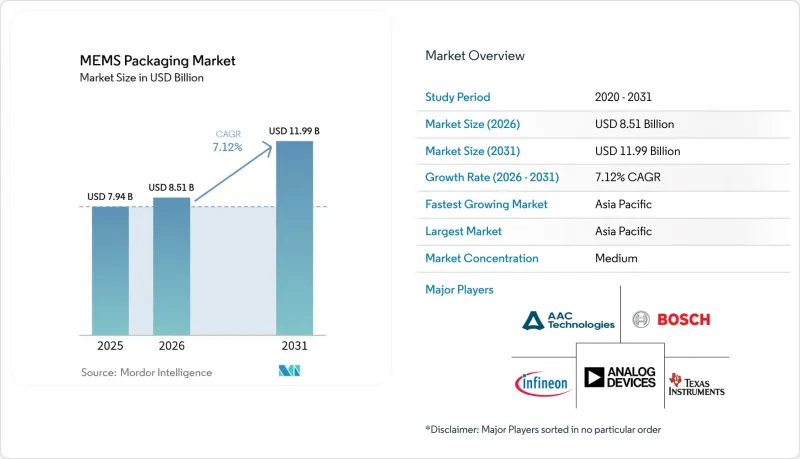

據 Mordor Intelligence 稱，MEMS 封裝市場預計到 2026 年價值 85.1 億美元，高於 2025 年的 79.4 億美元，預計到 2031 年將達到 119.9 億美元。

預計 2026 年至 2031 年的複合年成長率為 7.12%。

本報告按感測器類型（慣性感測器、光學感測器、環境感測器、超音波感測器、射頻微機電系統等）、封裝平台（晶圓級和晶片級封裝、系統級封裝等）、封裝材料（有機基板等）、終端用戶產業（汽車、行動電話等）和地區進行細分。市場預測以美元計價。

全球MEMS封裝市場趨勢與洞察

不斷擴大的智慧汽車市場

汽車原始設備製造商 (OEM) 正在整合多軸慣性單元、壓力感測器和光學影像防手震模組，這些組件必須符合 AEC-Q100 1 級標準，工作溫度範圍為 -40 度C至 +125 度C年，博世發布了 BHI385 感測器，這是一款整合了晶片上人工智慧的六軸慣性單元，能夠對車輛動力學進行預測分析。村田製作所已擴大其在芬蘭和日本的生產線，以供應能夠承受底盤振動的密封式加速計。汽車製造商現在要求在封裝層級實現感測器融合，並將其作為一項規範。此外，將陀螺儀、磁力計和壓力感測器整合到區域控制器印刷電路基板的系統級模組 (SiP) 也日益普及。英飛凌的 XENSIV 和意法半導體的 LIS2DU12 系列產品清晰地展現了這種向預校準模組的轉變。 Corvo的77 GHz雷達模組整合了一個基於MEMS的移變速器，可在豪華轎車中實現4D成像。隨著汽車平臺向集中式運算轉型，提供邊緣運算和車規級MEMS組件的封裝供應商在MEMS封裝市場中佔據了領先的設計地位。

在MEMS中採用異質整合以縮小尺寸

智慧型手機和穿戴式裝置的設計者對感測器模組的尺寸提出了低於 5 平方毫米的要求。 IEEE 國際藍圖預測，到 2030 年，覆晶凸塊尺寸將縮小至 10-20 微米，實現 MEMS 晶片與 CMOS 讀出電路的直接混合鍵結。意法半導體 (STMicroelectronics) 已決定在卡蘭巴、柯克普、深圳和麻坡投資建造新的後端設施，以擴展這項能力。弗勞恩霍夫奈米系統研究所 (Fraunhofer ENAS) 已展示了間距為 5 微米的矽玻璃鍵合技術，證實了下一代射頻 MEMS 的亞微米互連製程路徑的可行性。美國聯邦政府目前撥款 30 億美元用於先進封裝技術，重點關注 3D 堆疊和晶片生態系統，以降低邊緣人工智慧的延遲和功耗。英特爾開發的玻璃芯基板和肖特的密封玻璃解決方案均旨在解決矽晶片和有機層壓板之間熱膨脹係數不匹配導致的疲勞問題。這些進步加在一起，正在推動MEMS封裝市場實現更小的尺寸，並促進其長期成長。

對先進包裝生產線進行大量資本投資

一條MEMS封裝生產線可能需要超過2億美元的投資，用於鍵合、混合對準、PECVD製程以及先進的檢測設備。 Lam Research公司專注於這些工藝，提供SABRE、Syndion和Coronus平台。日月光半導體（ASE Technologies）已將其2025年的資本支出增加了60%以上，以擴大其凸塊成型、覆晶和SiP晶片的產能。 Amco公司位於亞利桑那州皮奧裡亞的工廠已根據《晶片製造和整合服務法案》（CHIPS Act）獲得了4億美元的津貼和2億美元的貸款，凸顯了此類設施在地化所需的補貼規模。雖然美國財政部的48D稅額扣抵可以降低稅後成本，但它並不涵蓋棕地工廠的升級改造，這意味著現有工廠必須自行承擔維修費用。對少數幾家資金雄厚的OSAT公司的依賴正在延長MEMS封裝市場的前置作業時間，並減緩其成長速度。

細分市場分析

預計到2025年，慣性感測器將佔銷售額的39.78%，為智慧型手機、穿戴式裝置和汽車穩定性模組等需要大量、低成本晶圓級封裝的應用提供支援。隨著MEMS移變速器和可變濾波器被整合到6G藍圖中的多頻段天線陣列中，射頻MEMS預計將以8.05%的複合年成長率成長。這一趨勢將推動高頻模組MEMS封裝市場規模的擴大。毫米波穩定性帶來的溢價推高了平均售價，抵銷了單件銷量的下降。用於防手震和雷射雷達反射鏡的光學MEMS致動器市場佔有率正在逐步提升，而環境感測器和超音波裝置則在工業和汽車領域拓展了商機。將六軸慣性測量單元（IMU）、壓力感測器和磁力計整合到單一基板上的系統級封裝（SiP）組件正在成為一種策略轉型，這將使PCB面積減少60%，並進一步擴大MEMS封裝市場。

智慧型手機OEM廠商正在增加組合模組而非單一晶片的訂單。博世和意法半導體都推出了Z軸高度小於2.5毫米的晶圓級光學影像防手震執行器，這表明嚴格的尺寸限制正在推動對更先進封裝的需求。 Qorvo公司用於汽車雷達的移變速器SiP將功率放大器和MEMS調諧元件整合到單一腔體中，其溢價正在提升MEMS封裝在射頻前端的市場佔有率。隨著整合度的提高，封裝級測試的複雜性也日益增加，迫使供應商轉向模組化SiP架構，以簡化最終測試和老化流程。

晶圓級晶片封裝 (WLCSP) 預計在 2025 年將佔銷售額的 44.25%，這主要得益於其在穿戴式裝置和行動電話晶片領域的空間效率和成本優勢。系統級封裝 (SiP) 預計到 2031 年將成長 9.22%，因為 MEMS 晶片、ASIC、被動元件和天線的聯合整合對於邊緣人工智慧和汽車安全至關重要。意法半導體計畫以 9.5 億美元收購恩智浦的 MEMS 業務，這將增強其在 SiP 領域的專業實力，並凸顯業界對垂直整合解決方案的強勁需求。覆晶BGA 封裝憑藉其銅柱凸塊，可在 -40 度C至 +150 度C的溫度範圍內保持性能，在汽車引擎室環境中繼續發揮關鍵作用，並擴大了 MEMS 封裝在安全關鍵模組中的市場佔有率。

封裝中封裝 (PiP) 技術正被應用於通訊基礎設施，透過將微機電振盪器堆疊在射頻放大器之上，縮短訊號路徑。陶瓷封裝仍是植入式醫療設備和航太應用領域的黃金標準，京瓷和村田製作所供應的鍍金氧化鋁蓋已通過 1000 小時高溫耐久性測試。弗勞恩霍夫奈米系統與應用研究所 (Fraunhofer ENAS) 已展示了用於 CMUT 陣列的玻璃粉鍵合技術，其洩漏率低於 10⁻⁷ mbar*ℓ/s，如果實現大規模生產，預計未來將降低成本。這種兩極化顯而易見：雖然晶圓級成本效益在家用電子電器中至關重要，但在醫療和汽車市場，對 SiP 和陶瓷的高投資是合理的，從而拓展了 MEMS 封裝市場，使其涵蓋各種性能等級。

區域分析

預計到2025年，亞太地區將佔全球銷售額的47.30%，並將在2031年之前以9.78%的年均成長率成長，這主要得益於中國擴大12英寸MEMS晶圓代工產能以及日本加大對九州叢集的投資。北京賽萊克斯（Silex）投資70億元人民幣後，已實現月產2萬片晶圓。SONY已為其CMOS和MEMS封裝生產線投入1.5兆元人民幣。日月光（ASE）和安姆科（Amcor）已在韓國和台灣設立基地，提供晶圓級和SiP產能，以支援MEMS封裝市場。

北美市場佔有率正在上升。這主要得益於《晶片與科學法案》下對國家先進封裝製造計畫的30億美元投資，該計畫旨在降低混合鍵結和玻璃芯製程的風險。 Rogue Valley Microdevices將於2025年初開始從佛羅裡達州出貨300毫米MEMS晶圓，以實現供應來源多元化。歐洲擁有博世、意法半導體和英飛凌等領導企業，但同時也依賴台灣的OSAT公司。安姆科位於波爾圖的工廠計劃於2025年投產，屆時將實現部分產能的在地化。南美、中東和非洲仍處於發展階段，主要依賴從亞太地區和北美進口封裝感測器。因此，由於政策和產能趨勢的變化，MEMS封裝市場的區域貢獻格局正在重組。根據區域情況的不同，市場呈現出明顯的兩極化現象。亞太地區憑藉其代工廠的規模和成本競爭力保持著銷售優勢，而北美和歐洲則利用政府補貼和監管義務來建立先進的國內封裝生產能力，降低供應鏈風險，並確保進入汽車和國防領域。

其他好處：

• Excel格式的市場預測（ME）表
• 3個月的分析師支持

目錄

第1章：引言

• 研究假設和市場定義
• 調查範圍

第2章：調查方法

第3章執行摘要

第4章 市場狀況

• 市場概覽
• 市場促進因素
  • 不斷成長的智慧汽車市場
  • 智慧型手機和連網型設備的廣泛普及
  • 工業自動化中感測器的應用日益廣泛
  • 具備物聯網功能的家用電器的需求
  • 透過在MEMS中採用異質整合來減少尺寸。
  • 微機電系統（MEMS）在需要密封真空包裝的植入式醫療設備中的應用日益廣泛
• 市場限制因素
  • 複雜的製造過程
  • 對先進包裝生產線進行大量資本投資
  • 射頻微機電系統晶圓級真空封裝的可靠度挑戰
  • 特種低熱膨脹係數包裝材料供應鏈瓶頸
• 產業價值/價值鏈分析
• 監理情勢
• 技術展望
• 宏觀經濟因素對市場的影響
• 波特五力分析

第5章 市場規模與成長預測

• 依感測器類型
  • 慣性感測器
  • 光學感測器
  • 環境感測器
  • 超音波感測器
  • RF MEMS
  • 其他感測器類型
• 透過包裝平台
  • 晶圓級晶片封裝（WLCSP）
  • 系統級封裝 (SiP)
  • 封裝中封裝 (PiP)
  • 覆晶球柵陣列（FC-BGA）
  • 陶瓷包裝
• 透過包裝材料
  • 有機基材
  • 陶瓷
  • 矽
  • 玻璃
  • 金屬和合金
• 按最終用戶行業分類
  • 車
  • 行動電話
  • 家用電子產品
  • 醫療保健系統
  • 產業
  • 其他終端用戶產業
• 按地區
  • 北美洲
    • 美國
    • 加拿大
    • 墨西哥
  • 南美洲
    • 巴西
    • 阿根廷
    • 智利
    • 其他南美國家
  • 歐洲
    • 英國
    • 德國
    • 法國
    • 義大利
    • 西班牙
    • 其他歐洲國家
  • 亞太地區
    • 中國
    • 日本
    • 印度
    • 韓國
    • 澳洲和紐西蘭
    • 其他亞太國家
  • 中東和非洲
    • 中東
      • 阿拉伯聯合大公國
      • 沙烏地阿拉伯
      • 土耳其
      • 其他中東國家
    • 非洲
      • 南非
      • 肯亞
      • 奈及利亞
      • 其他非洲國家

第6章 競爭情勢

• 市場集中度
• 策略趨勢
• 市佔率分析
• 公司簡介
  • AAC Technologies Holdings Inc.
  • Robert Bosch GmbH
  • Infineon Technologies AG
  • Texas Instruments Incorporated
  • Analog Devices Inc.
  • TDK Corporation
  • STMicroelectronics NV
  • Taiwan Semiconductor Manufacturing Company Limited
  • MEMSCAP SA
  • Amkor Technology Inc.
  • ASE Technology Holding Co. Ltd.
  • Qorvo Inc.
  • Sensata Technologies Holding plc
  • TE Connectivity Ltd.
  • NXP Semiconductors NV
  • Goertek Inc.
  • Sony Semiconductor Solutions Corporation

第7章 市場機會與未來展望

According to Mordor Intelligence, MEMS packaging market size in 2026 is estimated at USD 8.51 billion, growing from 2025 value of USD 7.94 billion with 2031 projections showing USD 11.99 billion, growing at 7.12% CAGR over 2026-2031.

This report is Segmented by Sensor Type (Inertial Sensors, Optical Sensors, Environmental Sensors, Ultrasonic Sensors, RF MEMS, and More), Packaging Platform (Wafer-Level Chip-Scale Package, System-In-Package, and More), Packaging Material (Organic Substrates, and More), End User Industry (Automotive, Mobile Phones, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Global MEMS Packaging Market Trends and Insights

Growing Smart Automotive Market

Automotive OEMs are embedding multi-axis inertial units, pressure sensors, and optical stabilization modules that must meet AEC-Q100 Grade 1 from -40 °C to +125 °C. Bosch introduced the BHI385 sensor in 2024, an integrated 6-axis IMU with on-chip AI that enables predictive vehicle-dynamics analysis. Murata expanded Finnish and Japanese lines to supply hermetically sealed accelerometers that survive chassis vibration. Automakers now specify sensor fusion at the package level, pushing System-in-Package modules combining gyroscopes, magnetometers, and pressure sensors into zone-controller PCBs. Infineon's XENSIV and STMicroelectronics' LIS2DU12 families illustrate this shift toward pre-calibrated modules. Qorvo's 77 GHz radar modules integrate MEMS-based phase shifters to enable 4D imaging in premium sedans. As vehicle platforms move to centralized compute, packaging suppliers that deliver edge-ready, automotive-qualified MEMS assemblies are capturing design wins that elevate the MEMS packaging market.

Adoption of Heterogeneous Integration in MEMS to Reduce Footprint

Smartphone and wearable designers demand sub-5 mm2 sensor modules. The IEEE International Roadmap projects flip-chip bumps shrinking to 10-20 µm by 2030, enabling MEMS die to be hybrid-bonded directly onto CMOS readouts. STMicroelectronics has committed new back-end capex in Calamba, Kirkop, Shenzhen, and Muar to scale this capability. Fraunhofer ENAS demonstrated silicon-to-glass bonding with 5 µm pitches, validating process paths to sub-1 µm interconnects for next-gen RF MEMS. U.S. federal strategy now channels USD 3 billion into advanced packaging, focusing on 3D stacking and chiplet ecosystems that trim latency and power for edge AI. Intel's work on glass-core substrates and SCHOTT's hermetic glass solutions both aim to resolve thermal-mismatch fatigue between silicon die and organic laminates. Collectively, these advances compress form factors and fuel long-run growth for the MEMS packaging market.

High Capital Expenditure for Advanced Packaging Lines

A single MEMS packaging line can require more than USD 200 million for bonding, hybrid alignment, PECVD, and advanced inspection gear. Lam Research positions its SABRE, Syndion, and Coronus platforms expressly for these flows. ASE Technology raised 2025 capex by over 60% to expand bumping, flip-chip, and SiP capacity. Amkor's Peoria, Arizona plant secured USD 400 million in CHIPS Act grants and USD 200 million in loans, underscoring the subsidy scale needed to localize such facilities. Treasury's 48D tax credit lowers after-tax cost but excludes brownfield upgrades, leaving existing plants to self-fund retrofits. Reliance on a small pool of well-capitalized OSATs extends lead times and moderates growth for the MEMS packaging market.

Other drivers and restraints analyzed in the detailed report include:

1. Expanding Sensor Usage in Industrial Automation
2. Rise of MEMS in Implantable Medical Devices Requiring Hermetic Vacuum Packaging
3. Supply Chain Bottlenecks for Specialty Low-CTE Packaging Materials

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

Inertial sensors accounted for 39.78% of 2025 revenue, underpinning smartphones, wearables, and automotive stability modules that demand high-volume, low-cost wafer-level housings. RF MEMS is forecast to expand at an 8.05% CAGR as 6G roadmaps incorporate MEMS phase shifters and tunable filters into multi-band antenna arrays, a trend lifting the MEMS packaging market size for high-frequency modules. The price premium associated with millimeter-wave hermeticity elevates average selling prices and offsets lower unit counts. Optical MEMS actuators for image stabilization and LiDAR mirrors add incremental share, while environmental sensors and ultrasonic devices broaden industrial and automotive opportunities. A strategic shift is emerging toward System-in-Package assemblies that integrate a 6-axis IMU, pressure sensor, and magnetometer on a single substrate, reducing PCB area by 60% and further expanding the MEMS packaging market.

Smartphone OEMs increasingly order combo-modules rather than discrete dies. Bosch and STMicroelectronics both released wafer-level optical image-stabilization actuators with z-heights below 2.5 mm, illustrating how tight form-factor constraints steer demand toward advanced packaging. Qorvo's phase-shifter SiP for automotive radar combines power amplifiers and MEMS tuning elements in one cavity, commanding a price premium that lifts MEMS packaging market share in RF front-ends. As integration deepens, package-level test complexity rises, nudging suppliers toward modular SiP architectures that streamline final test and burn-in.

Wafer-level chip-scale packages held 44.25% of 2025 revenue thanks to size-on-die efficiency and cost leadership in wearables and phones. System-in-Package is set to grow 9.22% through 2031 as co-integration of MEMS die, ASICs, passives, and antennas becomes essential for edge-AI and automotive safety. STMicroelectronics' planned USD 950 million purchase of NXP's MEMS operations adds SiP know-how and underscores industry appetite for vertically integrated solutions. Flip-chip BGAs maintain relevance in under-hood automotive environments where copper-pillar bumps enable -40 °C to +150 °C performance and bolster MEMS packaging market share in safety-critical modules.

Package-in-Package formats serve telecom infrastructure, stacking MEMS oscillators atop RF amplifiers to trim signal paths. Ceramic packages remain the gold standard for implantables and aerospace; Kyocera and Murata supply gold-plated alumina lids that meet 1,000-hour high-temperature life tests. Fraunhofer ENAS demonstrated glass-frit bonding for CMUT arrays with leak rates below 10-7 mbar*ℓ/s, signaling future cost reductions once scaled. The bifurcation is clear: consumer electronics prize wafer-level cost efficiency, while medical and automotive markets justify higher SiP and ceramic outlays, collectively expanding the MEMS packaging market size across varied performance tiers.

Complete Report Scope:

• By Sensor Type
  • Inertial Sensors
  • Optical Sensors
  • Environmental Sensors
  • Ultrasonic Sensors
  • RF MEMS
  • Other Sensor Types
• By Packaging Platform
  • Wafer-Level Chip-Scale Package (WLCSP)
  • System-in-Package (SiP)
  • Package-in-Package (PiP)
  • Flip-Chip Ball Grid Array (FC-BGA)
  • Ceramic Packages
• By Packaging Material
  • Organic Substrates
  • Ceramics
  • Silicon
  • Glass
  • Metals and Alloys
• By End User Industry
  • Automotive
  • Mobile Phones
  • Consumer Electronics
  • Medical Systems
  • Industrial
  • Other End User Industries
• By Geography
  • North America
    • United States
    • Canada
    • Mexico
  • South America
    • Brazil
    • Argentina
    • Chile
    • Rest of South America
  • Europe
    • United Kingdom
    • Germany
    • France
    • Italy
    • Spain
    • Rest of Europe
  • Asia-Pacific
    • China
    • Japan
    • India
    • South Korea
    • Australia and New Zealand
    • Rest of Asia-Pacific
  • Middle East and Africa
    • Middle East
      • United Arab Emirates
      • Saudi Arabia
      • Turkey
      • Rest of Middle East
    • Africa
      • South Africa
      • Kenya
      • Nigeria
      • Rest of Africa

Geography Analysis

Asia Pacific controlled 47.30% of 2025 revenue and is forecast to grow at 9.78% through 2031 as China ramps 12-inch MEMS foundries and Japan funds the Kyushu cluster. Beijing Silex hit 20,000 wafers per month after a RMB 7 billion investment. Sony earmarked ¥1.5 trillion for CMOS and MEMS packaging lines. South Korea and Taiwan host ASE and Amkor, providing wafer-level and SiP capacity that sustains the MEMS packaging market.

North America's share is rising as the CHIPS and Science Act channels USD 3 billion into the National Advanced Packaging Manufacturing Program, de-risking hybrid bonding and glass-core flows. Rogue Valley Microdevices will ship 300 mm MEMS wafers from Florida in early 2025, diversifying supply. Europe leverages Bosch, STMicroelectronics, and Infineon leadership but depends on Taiwan OSATs; Amkor's Porto facility opens in 2025 to localize some capacity. South America and the Middle East, and Africa remain nascent, importing packaged sensors from Asia Pacific and North America. Policy and capacity moves, therefore, redraw regional contributions to the MEMS packaging market. The geographic landscape is bifurcating: Asia Pacific will retain volume leadership through foundry scale and cost competitiveness, while North America and Europe leverage public subsidies and regulatory mandates to build domestic advanced-packaging capacity that reduces supply-chain risk and secures access to automotive and defense applications.

1. AAC Technologies Holdings Inc.
2. Robert Bosch GmbH
3. Infineon Technologies AG
4. Texas Instruments Incorporated
5. Analog Devices Inc.
6. TDK Corporation
7. STMicroelectronics N.V.
8. Taiwan Semiconductor Manufacturing Company Limited
9. MEMSCAP S.A.
10. Amkor Technology Inc.
11. ASE Technology Holding Co. Ltd.
12. Qorvo Inc.
13. Sensata Technologies Holding plc
14. TE Connectivity Ltd.
15. NXP Semiconductors N.V.
16. Goertek Inc.
17. Sony Semiconductor Solutions Corporation

Additional Benefits:

• The market estimate (ME) sheet in Excel format
• 3 months of analyst support

TABLE OF CONTENTS

1 INTRODUCTION

• 1.1 Study Assumptions and Market Definition
• 1.2 Scope of the Study

2 RESEARCH METHODOLOGY

3 EXECUTIVE SUMMARY

4 MARKET LANDSCAPE

• 4.1 Market Overview
• 4.2 Market Drivers
  • 4.2.1 Growing Smart Automotive Market
  • 4.2.2 Increasing Smartphone Adoption and Connected Devices
  • 4.2.3 Expanding Sensor Usage in Industrial Automation
  • 4.2.4 Demand for IoT-Enabled Consumer Electronics
  • 4.2.5 Adoption of Heterogeneous Integration in MEMS to Reduce Footprint
  • 4.2.6 Rise of MEMS in Implantable Medical Devices Requiring Hermetic Vacuum Packaging
• 4.3 Market Restraints
  • 4.3.1 Complex Manufacturing Process
  • 4.3.2 High Capital Expenditure for Advanced Packaging Lines
  • 4.3.3 Reliability Challenges in Wafer-Level Vacuum Packaging for RF MEMS
  • 4.3.4 Supply Chain Bottlenecks for Specialty Low-CTE Packaging Materials
• 4.4 Industry Value / Supply-Chain Analysis
• 4.5 Regulatory Landscape
• 4.6 Technological Outlook
• 4.7 Impact of Macroeconomic Factors on the Market
• 4.8 Porter's Five Forces Analysis
  • 4.8.1 Bargaining Power of Suppliers
  • 4.8.2 Bargaining Power of Buyers
  • 4.8.3 Threat of New Entrants
  • 4.8.4 Threat of Substitute Products
  • 4.8.5 Intensity of Competitive Rivalry

5 MARKET SIZE AND GROWTH FORECASTS (VALUE)

• 5.1 By Sensor Type
  • 5.1.1 Inertial Sensors
  • 5.1.2 Optical Sensors
  • 5.1.3 Environmental Sensors
  • 5.1.4 Ultrasonic Sensors
  • 5.1.5 RF MEMS
  • 5.1.6 Other Sensor Types
• 5.2 By Packaging Platform
  • 5.2.1 Wafer-Level Chip-Scale Package (WLCSP)
  • 5.2.2 System-in-Package (SiP)
  • 5.2.3 Package-in-Package (PiP)
  • 5.2.4 Flip-Chip Ball Grid Array (FC-BGA)
  • 5.2.5 Ceramic Packages
• 5.3 By Packaging Material
  • 5.3.1 Organic Substrates
  • 5.3.2 Ceramics
  • 5.3.3 Silicon
  • 5.3.4 Glass
  • 5.3.5 Metals and Alloys
• 5.4 By End User Industry
  • 5.4.1 Automotive
  • 5.4.2 Mobile Phones
  • 5.4.3 Consumer Electronics
  • 5.4.4 Medical Systems
  • 5.4.5 Industrial
  • 5.4.6 Other End User Industries
• 5.5 By Geography
  • 5.5.1 North America
    • 5.5.1.1 United States
    • 5.5.1.2 Canada
    • 5.5.1.3 Mexico
  • 5.5.2 South America
    • 5.5.2.1 Brazil
    • 5.5.2.2 Argentina
    • 5.5.2.3 Chile
    • 5.5.2.4 Rest of South America
  • 5.5.3 Europe
    • 5.5.3.1 United Kingdom
    • 5.5.3.2 Germany
    • 5.5.3.3 France
    • 5.5.3.4 Italy
    • 5.5.3.5 Spain
    • 5.5.3.6 Rest of Europe
  • 5.5.4 Asia-Pacific
    • 5.5.4.1 China
    • 5.5.4.2 Japan
    • 5.5.4.3 India
    • 5.5.4.4 South Korea
    • 5.5.4.5 Australia and New Zealand
    • 5.5.4.6 Rest of Asia-Pacific
  • 5.5.5 Middle East and Africa
    • 5.5.5.1 Middle East
      • 5.5.5.1.1 United Arab Emirates
      • 5.5.5.1.2 Saudi Arabia
      • 5.5.5.1.3 Turkey
      • 5.5.5.1.4 Rest of Middle East
    • 5.5.5.2 Africa
      • 5.5.5.2.1 South Africa
      • 5.5.5.2.2 Kenya
      • 5.5.5.2.3 Nigeria
      • 5.5.5.2.4 Rest of Africa

6 COMPETITIVE LANDSCAPE

• 6.1 Market Concentration
• 6.2 Strategic Moves
• 6.3 Market Share Analysis
• 6.4 Company Profiles (includes Global-level Overview, Market-level Overview, Core Segments, Financials as available, Strategic Information, Market Rank / Share for key companies, Products and Services, and Recent Developments)
  • 6.4.1 AAC Technologies Holdings Inc.
  • 6.4.2 Robert Bosch GmbH
  • 6.4.3 Infineon Technologies AG
  • 6.4.4 Texas Instruments Incorporated
  • 6.4.5 Analog Devices Inc.
  • 6.4.6 TDK Corporation
  • 6.4.7 STMicroelectronics N.V.
  • 6.4.8 Taiwan Semiconductor Manufacturing Company Limited
  • 6.4.9 MEMSCAP S.A.
  • 6.4.10 Amkor Technology Inc.
  • 6.4.11 ASE Technology Holding Co. Ltd.
  • 6.4.12 Qorvo Inc.
  • 6.4.13 Sensata Technologies Holding plc
  • 6.4.14 TE Connectivity Ltd.
  • 6.4.15 NXP Semiconductors N.V.
  • 6.4.16 Goertek Inc.
  • 6.4.17 Sony Semiconductor Solutions Corporation

7 MARKET OPPORTUNITIES AND FUTURE OUTLOOK

• 7.1 White-space and Unmet-Need Assessment
