市場調查報告書
商品編碼
2119077

合成單晶鑽石：市場佔有率分析、產業趨勢與統計、成長預測（2026-2031）

Synthetic Single Crystal Diamond - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)
出版日期: | 出版商: Mordor Intelligence | 英文 120 Pages | 商品交期: 2-3個工作天內

價格

※ 本網頁內容可能與最新版本有所差異。詳細情況請與我們聯繫。

簡介目錄

據 Mordor Intelligence 稱，合成單晶鑽石市場預計到 2025 年將達到 19.3 億美元，並預計將從 2026 年的 20.9 億美元成長到 2031 年的 30.4 億美元，在預測期（2026-2031 年）內複合年成長率為 7.78%。

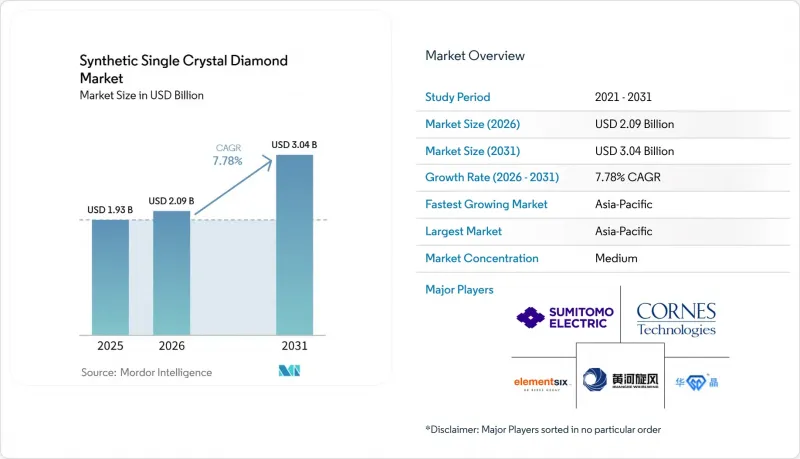

合成單晶鑽石市場-IMG1

本報告按產品類型（例如，單晶鑽石晶片）、純度等級（例如，高純度）、製造技術（例如，化學氣相沉積 (CVD)）、應用領域（例如，光電子學）、終端用戶產業（例如，汽車產業）和地區（例如，亞太地區、北美地區）進行細分。市場預測以美元 (USD) 為單位。

全球合成單晶鑽石市場趨勢及洞察

電子和半導體產業對先進溫度控管解決方案的需求日益成長。

合成單晶鑽石市場正受益於傳統散熱材料在高功率電子平台的限制得以解決。化學氣相沉積（CVD）單晶鑽石散熱器的熱導率可達2000–2200 W/(m·K)。根據Element Six報告的研究顯示，其熱導率超過2200 W/(m·K)，是上述對比中銅的熱導率的五倍以上。因此，鑽石可以緩解整合高頻寬記憶體和邏輯晶片的封裝中的散熱難題。這使得鑽石的角色從被動散熱器轉變為支援更高裝置性能的封裝組件。

這種潛力也延伸至氮化鎵 (GaN)、矽和碳化矽 (SiC) 平台，並可根據每種基板設計相應的熱界面。在結附近引入鑽石可以降低多層裝置設計中的熱阻。隨著封裝結構中越來越多的主動式元件緊密排列，這項特性變得日益重要。在合成單晶鑽石市場，可靠的鍵合、一致的表面品質以及與裝置製造的兼容性對於這些設計進入更廣泛的生產階段至關重要。此外，汽車和電信功率模組中正式的熱界面要求也要求在更廣泛應用之前進行額外的認證流程。

擴大 CVD 技術在高品質、大面積單晶鑽石基板的應用。

合成單晶鑽石市場也受到化學氣相沉積（CVD）生產進入門檻降低的影響。實驗室培育的珠寶級鑽石的成長降低了微波等離子體CVD設備的成本，並擴大了反應器的技術基礎。根據《化學與工程新聞》報道，製造商可以將原本用於珠寶級鑽石的反應器改造用於培育半導體級鑽石。雖然這項發展降低了初始設備准入門檻，但電子級鑽石的生產仍需要嚴格的製程控制。主要的商業性挑戰在於製造商能否將設備成本的降低轉化為大面積基板的穩定生產。

Element Six 和 Orbray 於 2026 年 6 月宣布推出可重複的 3 吋單晶鑽石基板製程。兩家公司還透露，4 英寸基板的研發工作正在進行中，而用於熱鍵合的 2 英寸晶圓在 Element Six 位於格雷沙姆的工廠已接近量產。更大的基板尺寸增加了每次運作可處理的裝置數量，使得將鑽石整合到 100 毫米半導體製造設備中成為可能。這種相容性將減少已在使用標準光刻和沈積設備的客戶的製程中斷。因此，晶圓直徑、良率和表面均勻性是合成單晶鑽石市場的關鍵競爭因素。

HPHT 和 CVD 製造設施需要大量的資本投資。

電子級CVD生產需要反應釜陣列、真空製程系統、拋光設備和測量儀器，所有這些都需要在工廠獲利之前進行大量的資本投入。河南黃河旋風科技有限公司已投資3.6億元人民幣（約5000萬美元）用於一個項目的第一階段，該項目計劃使用50套微波等離子體化學氣相沉積（MPCVD）系統，每年生產2萬片散熱片。該項目清晰地展現了大面積生產所需的設備密集化。此外，電子級生長需要更長的生產週期和嚴格控制的等離子體條件，從而導致更高的能耗。

這些成本要求使成熟供應商比小規模、成立時間較短的參與企業更具優勢。 Element Six、IIa Technologies 和 Applied Diamond 已建立起成熟的技術能力和客戶關係，為其資本投資提供支援。電力基礎設施的不足可能會進一步限制待開發區耗能生產區域的新建專案開發。因此，只要產能保持集中，合成單晶鑽石市場電子級材料的高價位可能就會持續存在。出口限制可能會增加合規成本，並限制先進合成鑽石材料的終端應用選擇。

細分市場分析

2025年，單晶鑽石晶片佔產品類型銷售額的42.53%，預計到2031年將以8.09%的複合年成長率成長。這一市場地位反映了其在半導體基板、光學窗口和散熱器坯料等領域的應用。單晶鑽石晶片市場受益於晶片尺寸的擴大，因為更大的尺寸允許在單次生產過程中製造更多晶片。 2026年發布的3吋製程和正在進行的4吋製程開發均與現有的半導體製造設備相容。在合成單晶鑽石市場，晶片也能滿足對尺寸和表面品質嚴格控制的高價值電子和熱學應用的需求。

單晶鑽石薄片適用於那些對厚度控制要求高於橫向面積的應用。雷射、雷達和光電子裝置使用者持續需要這種形狀的鑽石薄片來實現散熱和光學功能。單晶鑽石薄膜是最薄、最柔軟性的產品形式。在採用氮化鎵（GaN）/鑽石複合片的射頻功率放大器中，薄膜的重要性日益凸顯，因為直接生長製程可以降低熱界面損耗。雖然薄膜仍然是最小的銷售細分市場，但其在整合冷卻領域的應用正在開闢單一散熱器之外的新途徑。合成單晶鑽石產業需要根據每位客戶的獨特需求調整生產，同時確保所有形狀的產品都具有高品質。

預計到2025年，高純度鑽石將佔銷售額的62.38%，並將以8.45%的複合年成長率成長至2031年。電子裝置、量子感測和先進光學應用需要氮含量極低的材料。同位素富集的碳-12鑽石也有助於延長量子裝置中的自旋相干時間。一項2025年的研究發現，氮含量為0.8 ppm的低氮化學氣相沉積（CVD）鑽石在脈衝磁測量中實現了僅受光子散粒噪聲限制的直流磁場靈敏度。這些性能要求支撐了合成單晶鑽石市場中高純度產品的高價位。

標準純度材料仍用於切削刀具和拋光應用，在這些應用中，每克拉成本比光學透明度或量子相干性更為重要。隨著供應量的增加，大規模生產商可能會對標準等級材料的價格構成壓力。高純度供應商則透過製程控制、可靠的規格以及終端用戶的認證來競爭。美國和歐洲國防相關的量子感測項目的需求進一步推動了對嚴格控制材料的需求。合成單晶鑽石產業正日益呈現兩極化的趨勢，一方是大規模生產的工業級產品，另一方則是經過應用認證的高級產品。

區域分析

預計到2025年，亞太地區將佔據合成單晶鑽石市場55.62%的佔有率，並在2031年之前以8.41%的複合年成長率成長。中國的工業鑽石生產正從磨料生產轉向電子級散熱器和CVD基板的生產。河南黃河旋風科技有限公司透過其子公司河南豐創，於2026年建造了一條8吋鑽石散熱器生產線。第一期工程中，該公司投資3.6億元人民幣（約5,000萬美元）購置了50台MPCVD設備，生產的產品已透過華為和中芯國際的晶片封裝應用檢驗。這為該地區帶來了大規模產能和不斷擴大的技術基本客群。

日本正透過專注於高精度和高度專業化的產品，與中國的規模形成互補。 Orbray和Element Six已建立了可重複的3吋單晶鑽石工藝。 EDP​​已將1吋半導體晶圓推向市場，並開發了用於2吋規格的馬賽克晶體技術。韓國透過半導體設備製造商對鑽石基板的評估，發揮關鍵作用。在印度，合成鑽石的海關申報要求於2024年12月生效，貿易分類體係也已正式建立。這些進展正在改善投資計畫和跨境供應的營商環境。

北美和歐洲市場的特徵更體現在技術領先、國防需求和應用認證方面，而非產量。 ARPA-E 的 LADDIS 和 UWBGS 專案為 Element Six 公司研發用於國防和半導體應用的 100 毫米以上單晶晶片提供了支援。 Diamond Foundry 於 2025 年在西班牙特魯希略開設了一家商業 CVD 工廠。 Diamfab 於 2026 年在格勒諾布爾開設了先導工廠。這些地區的合成單晶鑽石市場正受惠於技術認證流程和國內供應鏈的發展。南美洲、中東和非洲市場仍處於起步階段，需求主要集中在工業切割、採礦以及石油和天然氣工具領域。雖然在預測期內，這些地區對電子級鑽石的需求有限，但這為大規模生產級鑽石的供應商提供了出口多元化的機會。

其他好處：
