預計 2025 年晶片貼裝設備市場規模為 15.4 億美元，到 2030 年將達到 20.7 億美元，預測期內（2025-2030 年）的複合年成長率為 6.09%。

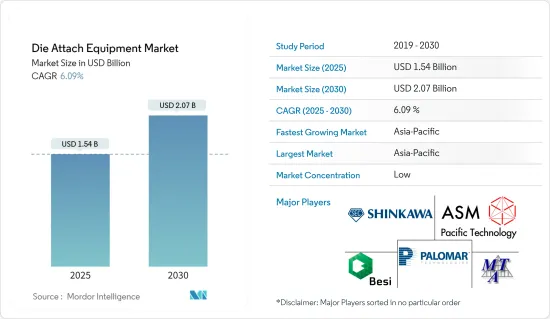

晶片貼裝設備-市場-IMG1

物聯網 (IoT) 設備中堆疊晶粒技術的日益廣泛使用推動了成長。最近的趨勢表明，由於醫療、軍事、光電和無線電子等新興和成熟的應用，對混合電路的需求仍然強勁。

關鍵亮點

  • C2W 混合鍵合是一種很有前景的新技術，可實現直接 Cu-Cu 鍵合，並可取代 TCB 用於 3D 堆疊記憶體和高階邏輯應用。然而，C2W 混合鍵結仍處於起步階段。預計該技術將於2022-2023年在2.5D邏輯裝置市場推出，大幅推動設備市場的成長。
  • 對 AuSn 共晶晶片黏接技術的需求將推動市場發展。傳統上，晶片採用各種各樣的晶片粘接產品進行粘接，包括金屬填充的導電環氧樹脂、高鉛焊料和金矽焊料，以確保它們在設備的整個使用壽命內可靠地運行。
  • 然而，發熱量不斷增加的趨勢、設備小型化的需求、RoHS和REACH的建立以及向GaAs晶片的過渡限制了傳統材料的使用。對高設備可靠性的需求促使工程師評估各種用於晶粒黏合的新材料。
  • 提案的焊料預製件是共晶金錫，可用於大規模生產或在實驗室中使用 Palomar Technologies 晶片焊接機。該設備能夠完成完整的晶片黏接過程，包括高精度拾取和放置基板、共晶金錫預製件和組件、共晶晶片黏接和使用電腦控制脈衝熱台（PHS）進行脈衝熱回流焊接。
  • 對分立功率元件的需求正在推動市場的發展。作為傳統電線和帶狀接頭的替代品，銅夾正變得越來越受歡迎。晶片黏接特性是分立功率元件封裝解決方案的特性。寬能能隙半導體晶粒技術（SiC 和 GaN）的採用帶來了新的創新封裝解決方案，包括銀燒結晶片黏接（材料包括環氧模塑膠和互連材料）。
  • EV/HEV 應用中從分立 SiC 到 SiC 模組的逐步過渡、嵌入式晶粒封裝系統以及多晶片系統中 GaN 裝置的整合只是這些趨勢的幾個例子。這導致對分立功率元件晶片貼裝設備的需求增加。
  • 然而，加工過程中的尺寸變化、使用壽命以及設備加工過程中運動部件的機械不平衡等因素可能會對設備功能構成挑戰並限制市場的發展。

晶片貼裝設備市場趨勢

LED 越來越受歡迎

  • 晶片黏接材料是中功率、高功率和高功率LED 性能和可靠性的關鍵。隨著LED滲透率的不斷提高，對晶片貼裝設備的需求也日益增加。為特定的晶片結構和應用選擇合適的晶片黏合材料取決於許多考慮因素，包括封裝製程（產量和產量比率）、性能（散熱和光輸出）、可靠性（流明維持率）和成本。共晶金錫、載銀環氧樹脂、焊料、矽膠和燒結材料均已用於 LED 晶片黏合。
  • 例如，SFE提供一種環氧膠粘合方法，其LED環氧固晶機的索引時間為0.2秒/週期（90％的運行率），晶片尺寸為250*250標準，並描述了透過兩個相機進行導線架識別。此軟體功能包括自動安裝水平和拾取水平教學功能。
  • 此外，導電黏合劑（主要是含銀環氧樹脂）是 LED 最廣泛使用的熱晶片黏接材料（以單位數計算）。它們與現有的後處理封裝設備相容，並提供具有吸引力的性價比（通常高達 50W/mK 的熱性能以及二次回流焊接相容性）。由於它附著在裸矽上，因此它是沒有後端金屬化的晶粒的首選材料，例如矽上的 GaN。
  • 此外，儘管LED市場上有許多對手和競爭者，但ASM是該市場上最突出的參與企業之一，其LED環氧樹脂高速晶片焊接機AD830在LED市場佔據主導地位。隨著越來越多的國家希望逐步淘汰傳統燈泡，LED 繼續佔據市場主導地位。根據聯合研究中心的數據，LED 營收滲透率正在上升，預計到 2025 年將達到 75.8%。這推動了晶片貼裝設備市場的需求。
  • 此外，2022 年 9 月，Palomar Technologies 宣布推出其新型晶片貼片機 3880-II，該產品榮獲 2022 年軍事+航空航太電子創新獎。新機器包括可最大限度提高生產率、減少高達 95% 的編程時間並提高整體黏合機生產率的選項。

亞太地區佔據顯著的市場成長

  • 亞太地區在晶片貼裝設備產業中佔有顯著的成長。全球超過 60% 的外包半導體組裝和測試（OSAT）公司總部設在亞太地區。這些 OSAT 公司在其半導體製造過程中使用晶片貼裝設備。此外，該地區的IDM（整合設備製造商）數量正在增加，預計這將很快推動市場成長。
  • 在中國和台灣，包括光電子、MEMS和MOEMS在內的多種設備被用於智慧型手機、穿戴式裝置和白色家電家用電子電器等電子產品的大量生產。所有這些設備在組件組裝過程中都需要晶片貼裝設備。
  • 此外，預計預測期內韓國、中國以及日本的人口老化將加速對醫療保健服務的需求，為包含 MEMS 壓力感測器的人工呼吸器、透析和血壓監測設備等提供發展空間。亞太經社會預測，到2025年，該地區60歲及以上人口數量將從目前的9.55人增加到10.64人，到2050年將增加到18.44人，佔世界人口的60%。 MEMS壓力感測器晶片貼裝設備的需求正在促進該市場的成長。
  • 此外，由於政府的舉措，印度正在發展許多智慧城市，並有望採用電子解決方案來實現監控、維護和監視等目的。根據smartcities.gov.in報道，中央政府已撥款9.77億美元用於建造60個這樣的智慧城市。這導致對更多CMOS影像感測器的需求，從而進一步推動市場成長。
  • 高功率雷射在切割、焊接和加工等多種應用領域中得到廣泛需求。該公司正在轉向雷射技術以利用其高性能和可靠性。雷射二極體的進步極大地增加了對處理環氧樹脂和共晶鍵合技術的設備的需求。
  • 物聯網、人工智慧和 ADAS 的發展預計將進一步增加記憶體需求。因此，現在比以前更需要提高儲存晶片製造的生產率和後處理設備的可靠性。為了解決這個問題，2022 年 8 月，史丹佛大學的工程師宣布，他們將創建更有效率、更靈活的 AI 晶片，有可能將 AI 的力量帶入微型邊緣設備，有助於提高記憶體製造的吞吐量和可靠性。

晶片貼裝設備產業概況

由於本地和全球參與企業的存在，晶片貼裝設備市場競爭激烈，因此市場呈現細分化。此外，各公司都致力於透過開發和合作來提高產量和產量比率等設備性能，加劇了市場競爭。主要參與企業包括 Be Semiconductor Industries NV、ASM Pacific Technology Limited 和 Palomar Technologies Inc.
